Description

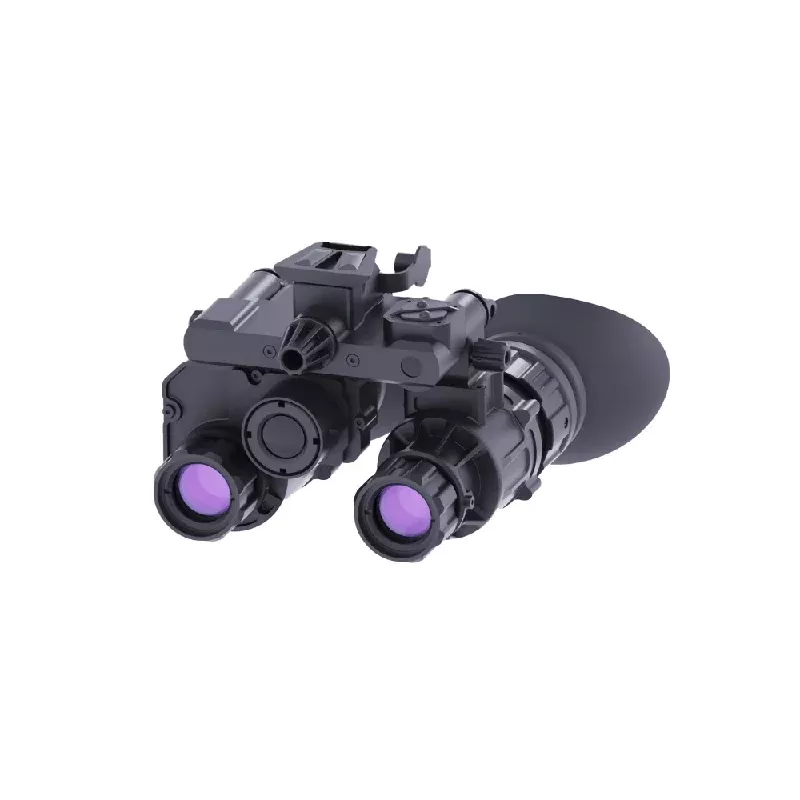

The GNG-GF31 is a helmet mountable thermal fusion night vision binocular system that combines a 640×512 thermal imaging sensor for detection and a 1″ low light digital night vision goggles sensor for navigation and observation, as well as target positioning function. This device offers a real time fusion of low light and thermal imagery with no misalignment with a high refresh rate and very low latency and it can be used in the day or night. It can be connected to a helmet or run as a handheld unit. Features:- OLED Micro Display- Binocular Stereoscopic Vision- Rain proof- Long battery life- 100Hz High Refresh Rate- High Dynamic Range- Orienteering Compass- Day and Night use Only available for shipping to the United States. Free UPS shipping with insurance and signature will be required for delivery! International orders will not be accepted. There is also a monocular variant from ADNV called the GF20.
The GF31 is a next-generation digital night-vision thermal fusion binocular engineered for serious operators who demand performance without compromise. Built around dual 1-inch high-sensitivity imaging sensors with ultra-low-light capability down to 0.00005 lux and a 640 x 512 12μm thermal sensor, the GF31 delivers clear, real-time imagery and heat detection in the darkest conditions where lesser systems fail.
With a crisp 800×600 OLED display and high-speed 50Hz / 100Hz frame rates, the GF31 provides smooth, low-latency imaging for confident movement and rapid target acquisition. Its wide 50° field of view and true 1× magnification preserve natural depth perception and situational awareness in dynamic environments.
Designed for mission-critical use, the GF31 thermal fusion goggles operates for over 75 hours in low-power mode, and is housed in a rugged IP67-rated aluminum alloy chassis built to withstand harsh operational conditions. Fully compatible with standard Wilcox mounting systems, it integrates seamlessly into modern tactical setups.
This isn’t entry-level equipment.
The GF31 is trusted by professionals for tactical training, security operations, and demanding night missions where reliability matters.
GF31 — digital night vision and thermal performance, without compromise.
There is approxiamtely a 6-8 week lead time from when the order is placed to when the customer receives the product. Only available for shipping to the United States and this is an ITAR product. Free UPS shipping with insurance and signature will be required for delivery! International orders will not be accepted.
DEVICE PARAMETERS
Image sensor dimension: 1 inch
Spectral response range: 400nm ~ 1100nm Thermal: 8μm ~ 14μm
Image resolution: 800 x 600 Thermal: 640 x 512
Pixel size: 18μm Thermal: 12μm
Minimum illumination (No light compensation): 0.00005 Lx
OLED resolution: 800 x 600
Frame rate: 50Hz/100Hz
OPTICAL PARAMETERS
Objective lens focal length: 19.8mm / Thermal 10.6mm
F/: F1.05 / Thermal F1.0
FOV: 50° (> 40° x 30° )
Exit pupil: 8mm
Exit relief: 23mm
Magnification: 1ˣ
Min. Objective focus: 250mm
Diopter: -4D ~ +4D
THE PARAMETERS OF THE ENTIRE MACHINE
Boot time: <4s
Battery: Four 18650 rechargeable lithium batteries
Max. Operation time:> 38 hours (Low power mode)
Size: 107 x 105 x 89 (mm)
Mechanical interface: Standard wilcox interface
Extensible electrical interface (Battery compartment): Type-C
Degree of protection: IP67
Weight (Goggle only): <551g (Magnesium-aluminum alloy)
System weight (Including four batteries): <1076g (Magnesium-aluminum alloy, Composite resin)
Environmental adaptability: Operating temperature: -20°C ~ 55°C (Expandable to -40°C ~ 60°C) Storage temperature: -25°C ~ 55°C (Expandable to -45°C ~ 70°C)
DRI for Human: 935m (Detection) / 468m (Recognition) / 234m (Identification) Thermal: 751m (Detection) / 375m (Recognition) / 188m (Identification)
DRI for Vehicle: 1265m (Detection) / 633m (Recognition) / 316m (Identification) Thermal: 1016m (Detection) / 508m (Recognition) / 254m (Identification)
