Description
The point at which things come together is the nexus and that word describes the Element Optics Nexusperfectly because it brings together the most important features that a shooter looks for, including ashooter-designed MOA basedreticle, tool-freeturrets, a truezero stop, and a removable throw lever.
Designed from the ground up by a team of world-class competitive shooters and hunters, the Nexus is the Element Optics flagship andno pains were spared to make it the ultimate 30mm rifle scope.
The EHR-1C ((Expedited Hold Reticle) reticle provides holdover hash marks at 1, 2, and 4 MOA while leaving the rest of the sight picture unobstructed. This reticle is designed to be intuitive to the eye and mind and still give you all the functionality that you need. Designed by Ted Bier (competitive airgun shooter and Youtuber), the EHR-1C provides the shooter everything they need without feeling cluttered or busy, perfect for those that want to keep it simple.
The Nexus is built to the highest standards of qualityand it is protected by the Platinum Lifetime Warranty. If you are looking for a scope that will enhance your shooting experience and precision, the Element Optics Nexus is the scope you’ve been waiting for.
Helpful resources:
- Learn how to pick the right scope
- Tips for picking scope mounts

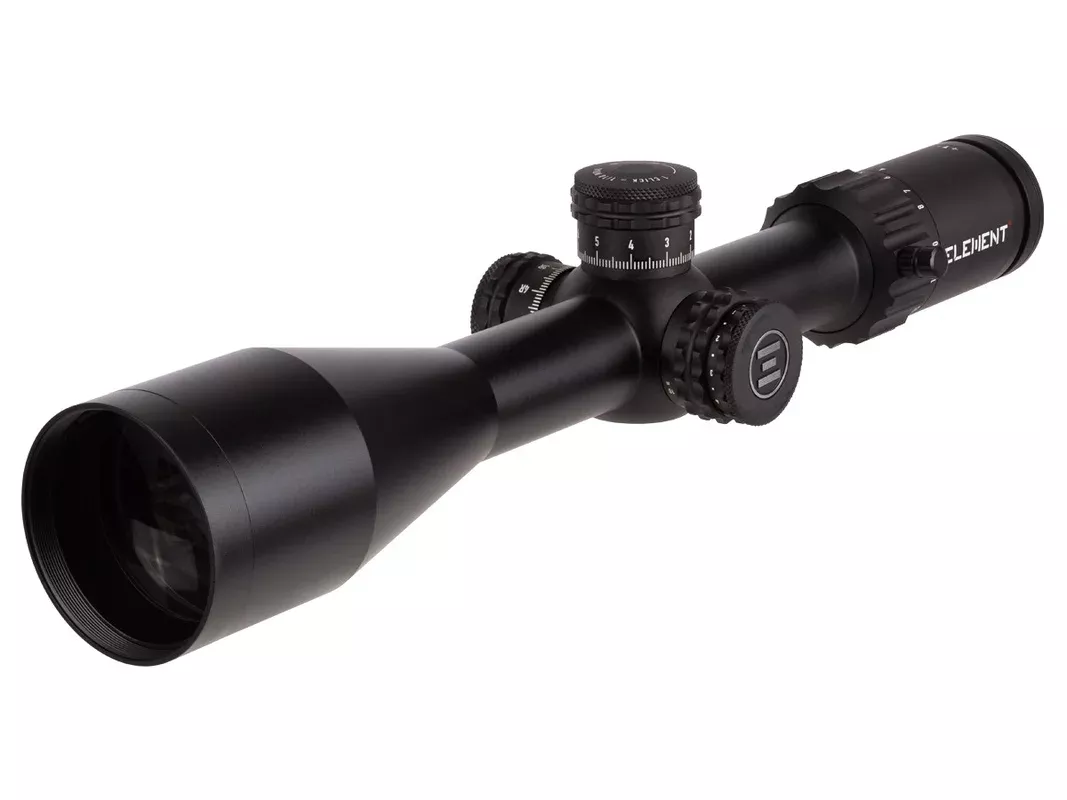

Element Optics Nexus 5-20×50 FFP w/ EHR-1C MOA Reticle
- Magnification Range: 5-20x
- Tube Diameter: 30mm
- Reticle Position: First Focal Plane
- Objective Lens Diameter: 50mm
- Eye Relief: 3.03-3.66″
- Field of View @ 100yds: 23.3-5.8ft
- Click Value: 1/4 MOA (20 MOA/REV)
- Elevation Adjustment Range: 80 MOA
- Windage Adjustment Range: 50 MOA
- Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer
- Tool-free Resettable Turrets
- AdjustableZero-Stop
- Minimum Parallax Distance: 10 Yds
- Illuminated Reticle
- Springer Rated
- Platinum Lifetime Warranty
- Removable Throw Lever
- Length: 13.8″
- Weight: 28 oz
- Includes Sunshade, Lens Cloth & Neoprene Cover
- Made in Japan
Brand
Element Optics
Weight
1.75 lbs
Min Magnification
5 x
Max Magnification
20 x
Objective Size
50 mm
Max Eye Relief
3.66 in
Min Eye Relief
3.03 in
Max FOV at 100 Yards
23.3 ft
Min FOV at 100 Yards
5.8 ft
Focal Plane
First (FFP)
Max Windage
50
Max Elevation
80
Click Value
1/4 MOA
Click Adjustment Type
MOA
Max Parallax
Min Parallax
10 yds
Parallax
Adjustable
Tube Diameter
30 mm
Illumination
Red
Reticle Type
EHR-1C MOA
